FINAL LESSON
Lesson number 5
For the last lesson I decided to prepare something useful that combines 2 means that I combined during the course.
The first one I chose to incorporate is the layout of a product into sheets according to thickness (from lesson number 4), the second is the folding option (from lesson number 3)
A wall clock made of layers of wood in formal cuts, which combines hands designed with the help of the folding technique
The cutting layout
wood layers
Duplex layer
Wall clock
made of layers of wood with a thickness of 0.5 cm each layer
hands of the clock
made from the folds of a duplex type sheet with a thickness of 1 mm

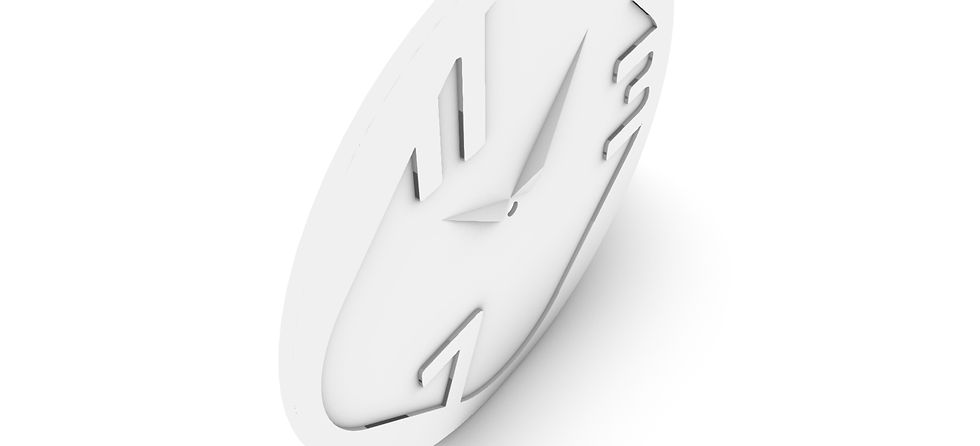

Documentation of the Visualization of the final product
The final result after painting and finishing
